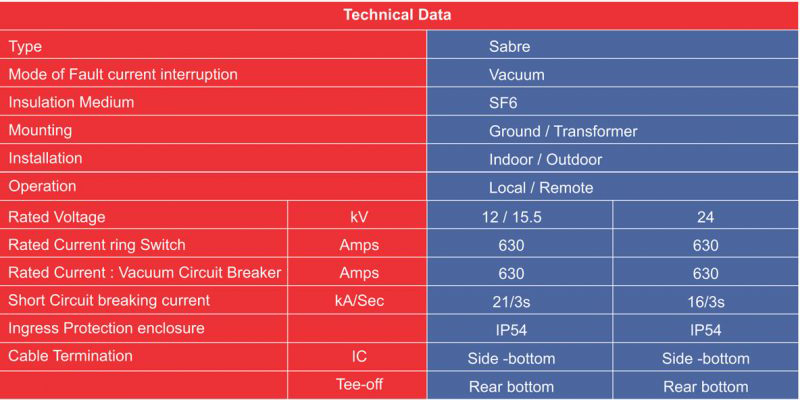

Sabre

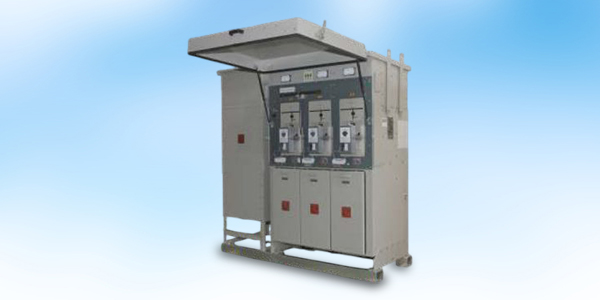

SF6 insulated with vacuum circuit breaker protection Lateral and rear cable termination, SF6 gas insulated RMU, fully weatherproof with IP54 for outdoor applications.



CHARACTERISTICS

  • Up to 24 kV and 630 A rangs
  • Non extensible, extensible and modular range including metering facili]es
  • Switching func ons enclosed in SF6 gas insulated robocally welded stainless steel tank sealed for life
  • Intuiµve single line mimic diagram for simple and safe operaon
  • Opon of Integrated cable earth and test facility
  • Choice of TLF (}me limit fuses) or wide range of self / auxiliary powered relay protecon
  • An reflex mechanism to prevent load break switch opening under fault condions
  • Fully interlocked operaon with padlocking facility for maximum operator protecon
  • Freestanding and transformer mounted units
  • Internal arc classified including cable boxes as per latest IEC 62271 standards
  • Actuators (motorised) for ring switches and circuit breakers
  • IP54 for outdoor installaon without requiring a kiosk
  • Seamless integraon with SCADA network for remote operaon and control
  • Maintenance free and low environmental impact
